Timetable Daily: Synchronisation to Millennium via Direct Connection

Modified on Mon, 12 Jan at 1:47 AM

TABLE OF CONTENTS

Preamble
Type of sync
Which data is sent to the other system?
Steps to synchronise data

Preamble

Timetabling data that exists in Timetable files are usually sent on to one or more other non-Tes systems, such as student learning management systems, reporting systems, administration systems, and many more. The Tes integration team works with other systems to make sure that the data required to be sent is in the correct format.

This document can be referenced for:

new school Daily set up
synchronisation processes
synchronisation troubleshooting

The following information has been provided by the Millennium team and was correct at the time of publication. Please check the Millennium documentation for any changes to the process. Please contact them for any support required in the set up in this system, as Tes consultants are not able to advise.

While Tes takes all care to ensure any mention to the other system is correct and up to date, it is the user's responsibility to check with the other system prior to an initial sync. If the user becomes aware of any changes to the other system, we would very much appreciate this feedback

Type of sync

This sync is performed by a 'LISS' sync, which is a sync that sends and receives data at the push of a button with no need to manually upload data into the other system.

Which data is sent to the other system?

This table lists many of the data and features found in Tes and, where known by Tes specialists, whether they are also understood by the other system.

Note that Tes builds many excellent features to help users build high quality timetables, and while these features can be sent onto the other system through the synchronisation process, not all systems have built the capability on their end to receive/display these feature

Tes Timetable feature	Notes on feature	Is this feature received by the other system?	Other notes
Cycle date mapping	bell times and date mapping calendar	Unsure
Campuses	Campuses and their associated rooms	Unsure
Classes	Class code, GUID, Faculty, Course Name, Assigned teacher	Yes
Class lists		Unsure
Composite classes (linked classes)	One teacher teaching more than one class at the same time	Unsure
Duty roster		Unsure
Faculty data		Unsure
Grid structure codes		Unsure
Multi-file	Two (or more) timetable files	Unsure
Multi-grid	Multiple grids with different bell times	Yes
On-call roster		Unsure
Priority classes	The priority class that shows on student's timetables where they have class clashes	Unsure
Room data	Room Code, Name, Size, Comment	Yes
Rotation classes	Classes from particular rotations	Yes
RTO roster		Unsure
Student data	Student Code, First name, Last name, Year level, Gender, GUID	Unsure
Study roster	Study classes, staffing and rooming roster	Unsure
Sub-classes		Unsure
Teacher data	Teacher Code, First name, Last name, Faculty, GUID	Yes
Teacher days off (Unavailable)		Unsure
Timetable data		Yes
Two (or more) rooms at once		Unsure
Two (or more) teachers at once		Unsure
Year levels (non-numeric)	Year levels such as SPT, LSUP, ROLL, Yr9+10 etc...	Unsure
Publish Daily Timetable	Sends the following Daily data: Events, Covers, Absences and Room swaps	Yes

Yes - The data is sent from our end and is being received and processed by 3rd party system.

No - The data is not supported by 3rd party systems and is not sent from the Timetable file.

Unsure - The data is being sent from the Timetable file but we are unsure if it is being processed and supported by Millennium.

Steps to synchronise data

Step 1: Check if any Millennium set up is required

Many systems require some set up prior to receiving timetable data from the Timetable file. Check with Millennium.

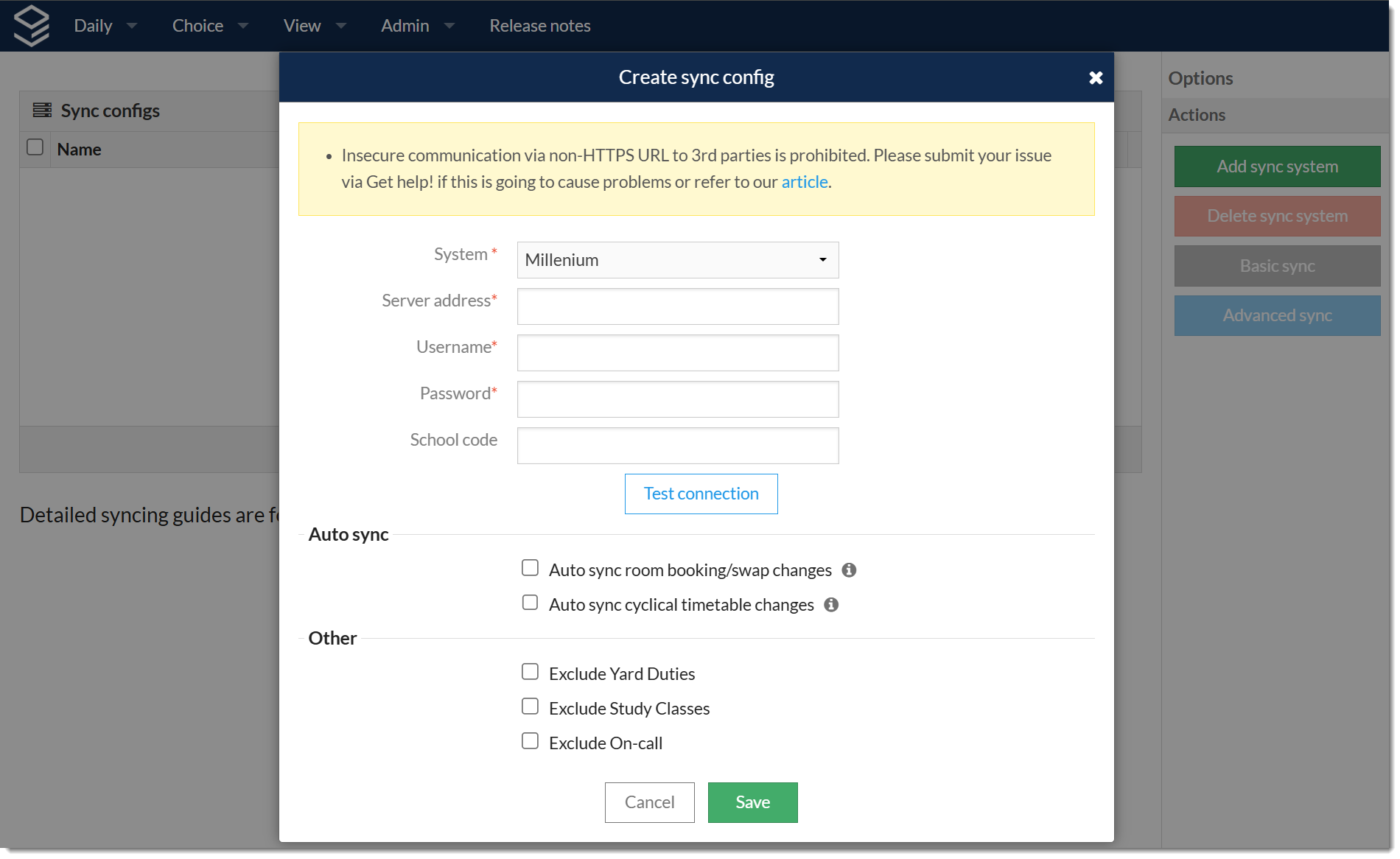

Step 2: Configure the Timetable Daily Sync

Go to Daily > Synchronise
Choose 'Add sync system' and select Millennium from the system dropdown.
Enter your Millennium credentials in the relevant fields. Contact the Millennium support team if you have any issues or queries about these details.
The 'Auto Sync' section is deselected by default. If you wish Timetable Daily to sync room bookings and/or cyclical timetable changes from the timetable file automatically then select one or both of these options. For more information on this feature please see the following document: Automated Instant Synchronisation.

In the 'Other' section please select your preferences and then click Save.

Option	Details
Exclude Yard duties	When ticked Yard duties will be ignored for syncing purposes
Exclude Study classes	When ticked Study classes will be ignored for syncing purposes
Exclude On-calls	When ticked On-calls will be ignored for syncing purposes
Exclude teacher Admin IDs (not recommended)	When ticked, teachers Admin IDs will be ignored for syncing purposes (In Admin>Users>Teacher Admin ID)

Step 3: Perform the sync There are three methods of syncing to Millennium from Daily, listed below in order of convenience. The Advanced sync is important for troubleshooting and special cases so please familiarize yourself with it.

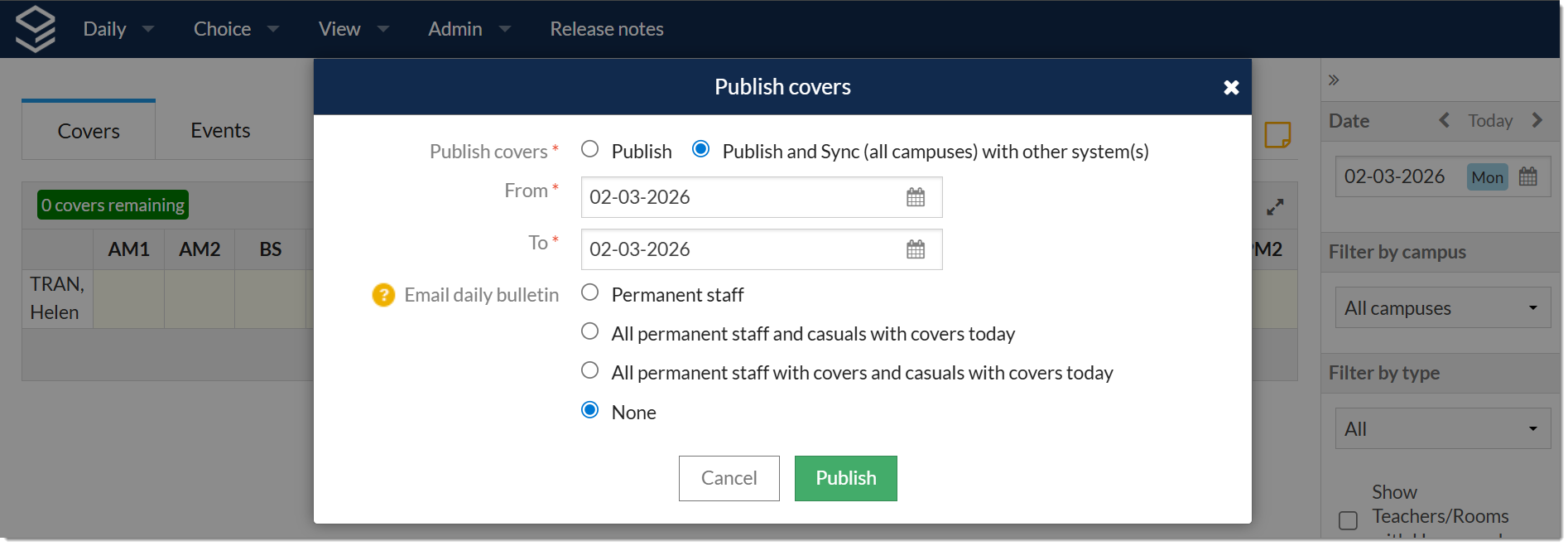

Publish & Sync

Publish & Sync option is the recommended approach used daily by daily organisers. This will sync all the daily variations happening for the date range.

To perform Publish and Sync:

Go to Daily > Cover and Click on the Publish.
Select Publish and Sync with other system from the Publish covers panel.
Enter the dates required.
Select Sync to complete the process.

For more information on this feature please see the following document: Timetable Daily: Covers Tab

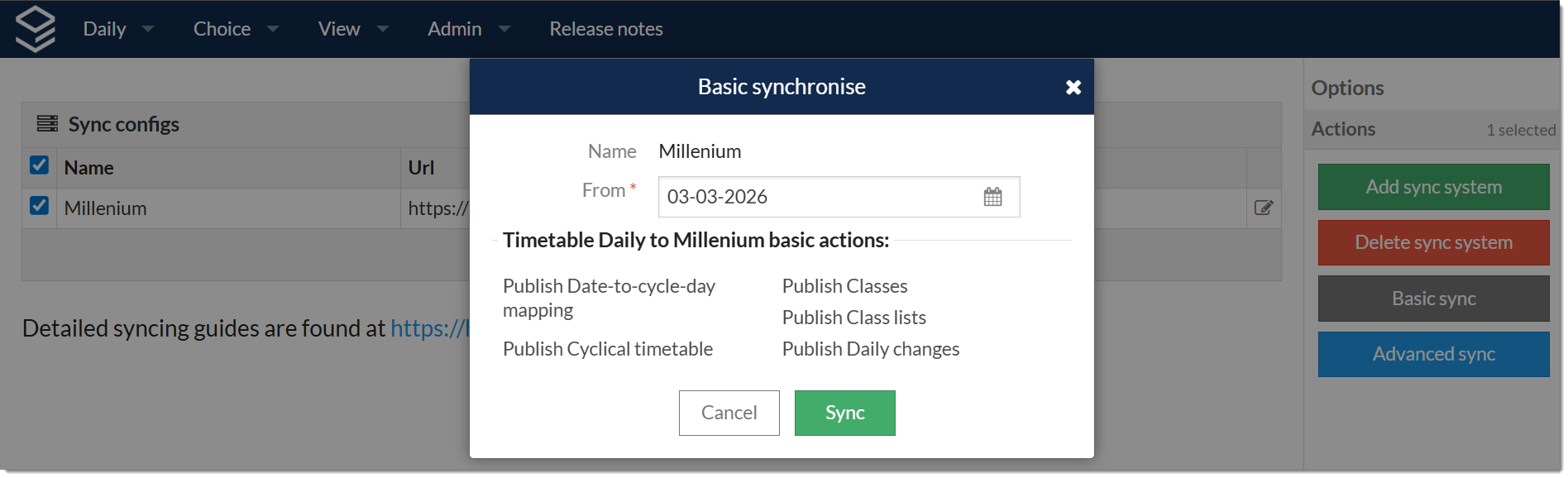

Basic Sync

The basic sync can be performed on daily basis and this would sync the basic daily information with some extra information but not the extend that Advanced sync is sending. The recommended approach for school is to peform Advanced sync at first and then moving forward continue doing Publish & Sync.

To perform Basic sync:

Go to Daily > Synchronise and select the Millennium configuration.
Select Basic sync from the actions panel.
Enter the dates required.
Select Sync to complete the process.

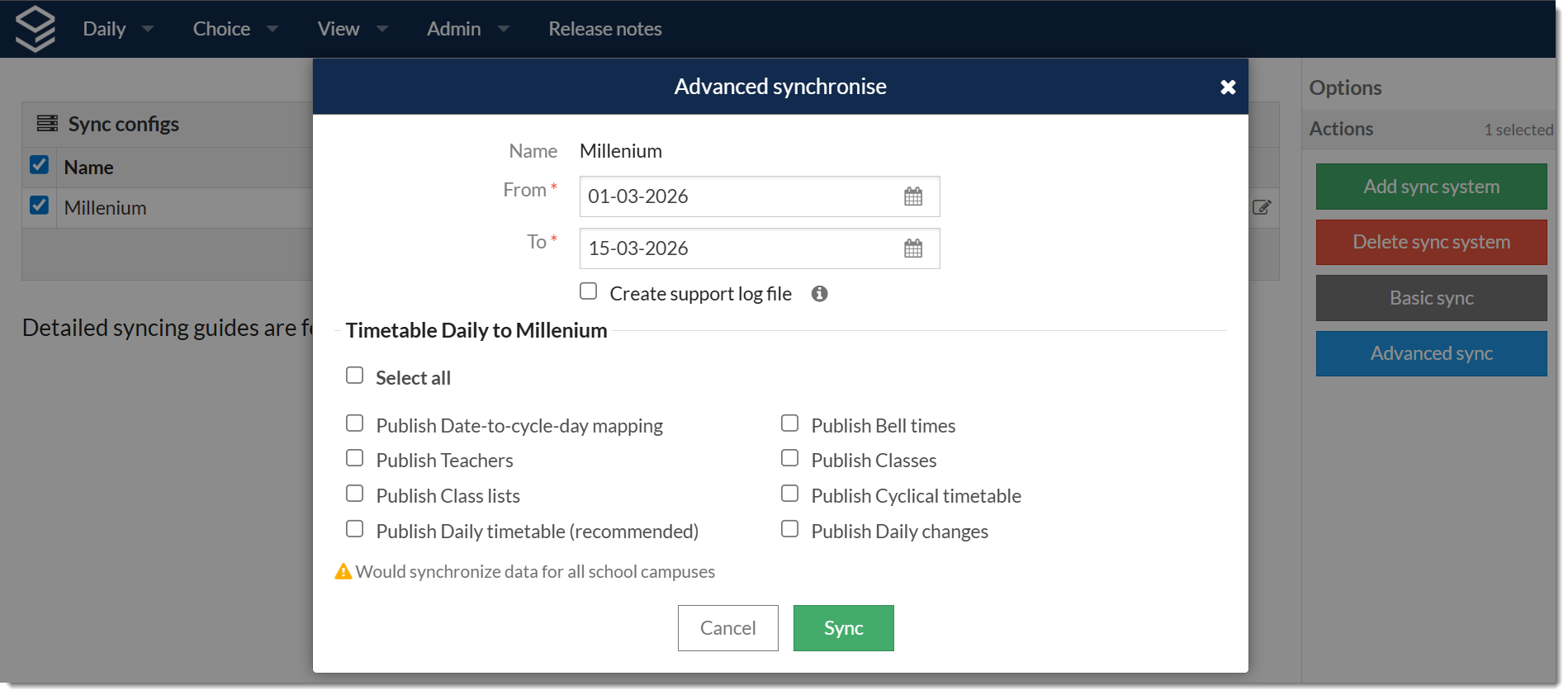

Advanced Sync

This sync type is normally used for the first time when needing to perform a full sync which could be a very first time setup or new academic year or new semester with major changes coming from timetable file. This sync type would not only send the daily data but also any timetable related will be synced.

To perform a advance sync:

Go to Daily > Synchronise and select the Millennium sync configuration.
Select 'Advanced sync' from the actions panel.
Select the data that is required to be sent.
Select 'Sync' to complete the process

Create support log file: Occasionally, Tes specialists may ask you to perform a sync and tick this box, which will create a text file in the Download location in your computer. This file can be sent to Tes to help with troubleshooting
